ECU Model:
BOSCH EDC17 C84 [1782] for Renault, Nissan [Diesel]
Tool Used:

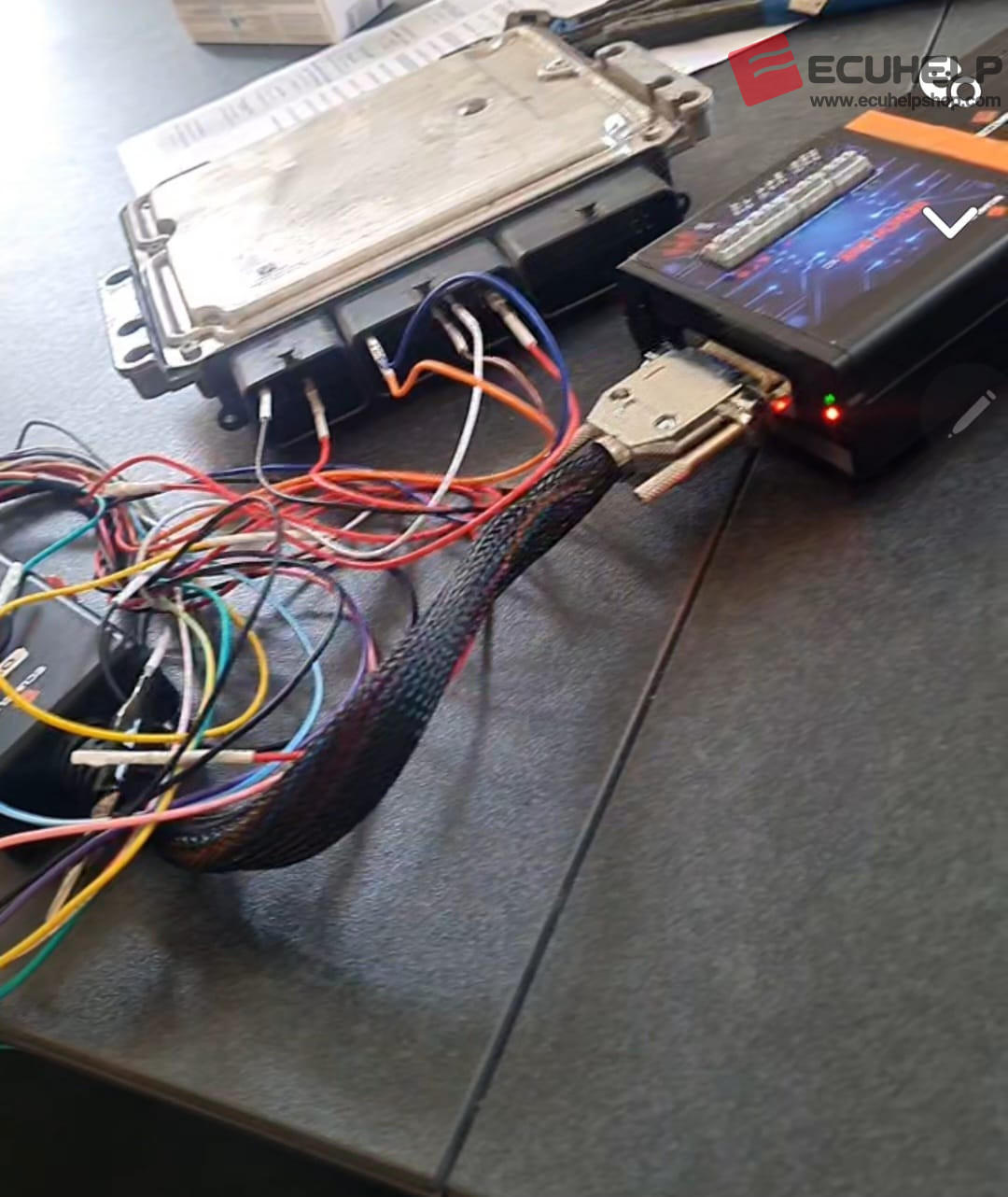

ECUHELP KT200II on bench
Operation Summary:
Read: OK
Write: OK
Checksum: OK
Overall Status: Everything OK

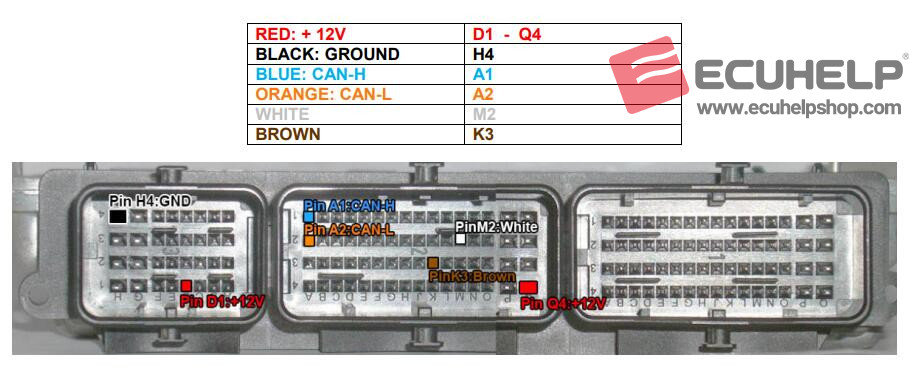

KT200II wiring diagram of BOSCH EDC17 C84 [ 1782 ] – Renault, Nissan [Diesel]:
Connect the multifunction cable as follows:
KT200II read and write EDC17C84 using the following driver:
→ BENCH TRICORE
→ RENAULT or NISSAN
→ TC1782 – RENAULT
→ EDC17 C84
ATTENTION:

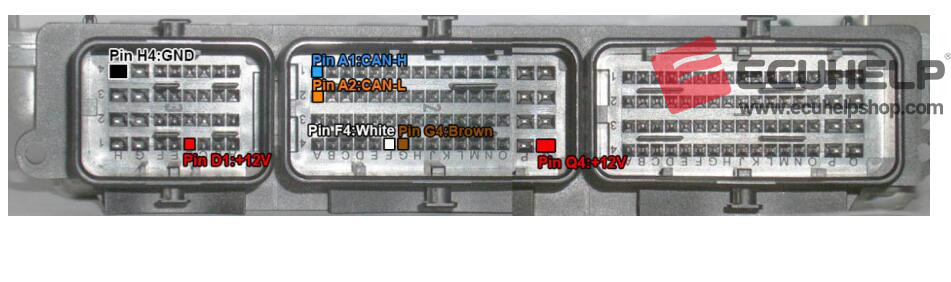

Some EDC17C84 enter in Bench mode with the white and brown wires on pins F4 and G4. If with the previous pinout doesn’t enter in bench tricore mode, then try again by connecting it as follows:
Conclusion:
Successfully reading and writing the EDC17C84 using the KT200II demonstrates the device’s reliability and flexibility with Renault and Nissan models. Ensure correct cable connections and settings for optimal performance. Refer to alternative wiring instructions if standard configurations do not achieve desired results.
