ECUHELP KT200II is tested and able to read and write TRW EMS2.4 ECU on VOLVO TRUCK and RENAULT TRUCK.
Bench mode:
Micro + EEPROM reading OK
Micro + EEPROM writing OK
Recovery OK
Checksum OK

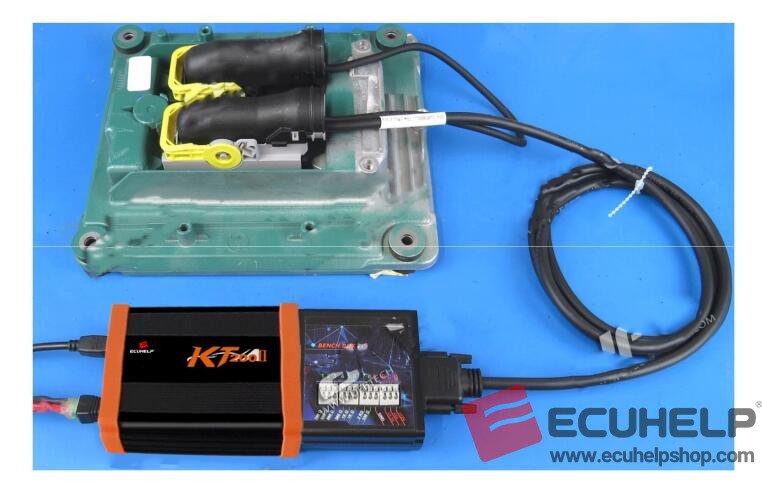

KT200II Wiring Diagram of TRW EMS2.4 [ SPC5777 ] – RENAULT / VOLVO [ Diesel ]
Use:
Cable DFB D48CBB04
– Bench Box V.2
– Laboratory power supply or battery
To read and write use the following driver:
→ BENCH MODE
→ RENAULT TRUCK / VOLVO TRUCK
→ SPC5777 – [ brand ]
→ TRW EMS2.4
In the absence of cable DFB D48CBB04 for TRW EMS 2.2/3/4, connect as on the following page..
Use:
– Multifunction cable
– Bench Box V.2
-Laboratory power supply or battery

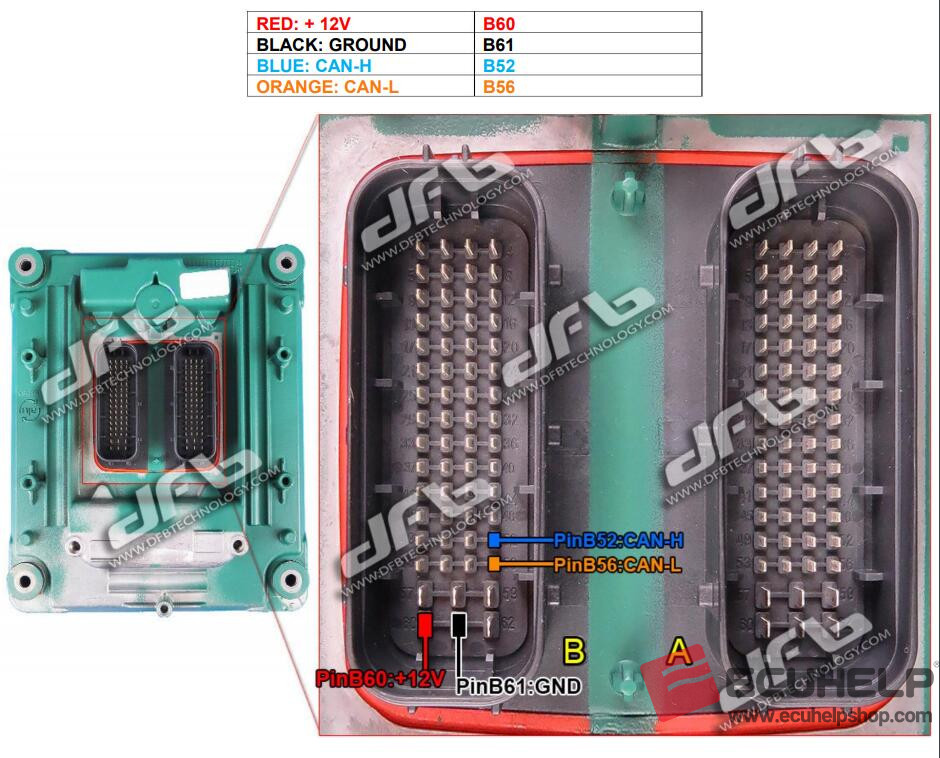

Connect the multifunction cable as follows:
To read and write use the following driver:
→ BENCH MODE
→ RENAULT TRUCK / VOLVO TRUCK
→ SPC5777 – [ brand ]
→ TRW EMS2.4
In conclusion:
ECUHELP KT200II proves to be a highly efficient and reliable tool for reading and writing the TRW EMS2.4 ECU, specifically for VOLVO and RENAULT trucks. Its successful performance in bench mode, encompassing Micro and EEPROM reading and writing, along with recovery and checksum verification, highlights its effectiveness in dealing with complex truck ECUs.
