ECUHELP KT200II is tested to read/write Seat leon fr 2016 Simos 18.1 Boot mode.
Step 1. Password search
Kit to use:
– Multifunction cable
– Bench box
– 2 resistances of 1000 Ω

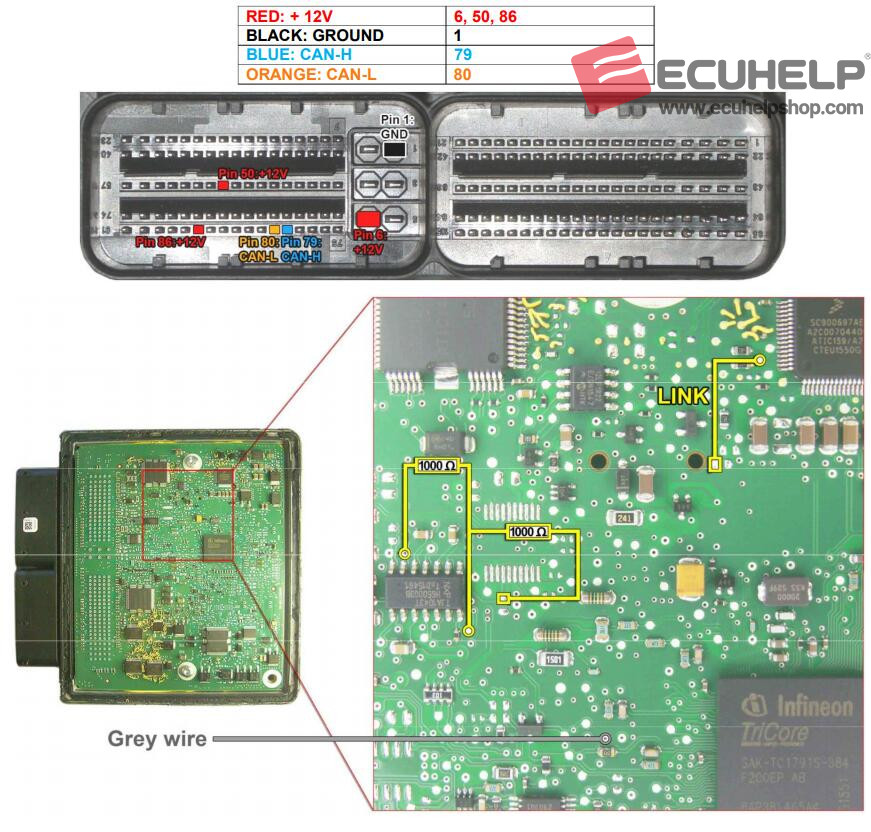

Connect with the multifunction cable the following pinout and the connections on the pcb. Use the driver: → TOOLS BOOT MODE → INFINEON TRICORE Password → PASSWORD SIMOS 18 BENCH BOX → Click on “Find Password”
Step 2. READ AND WRITE ECU
Now that the password has been found it’s possible to read and write the control unit.

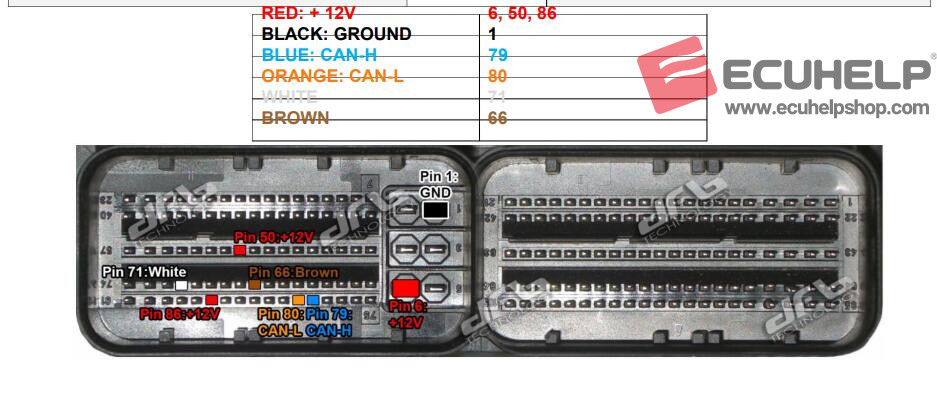

Connect with the multifunction cable the pinout
(Attention: Now remove the bench box)

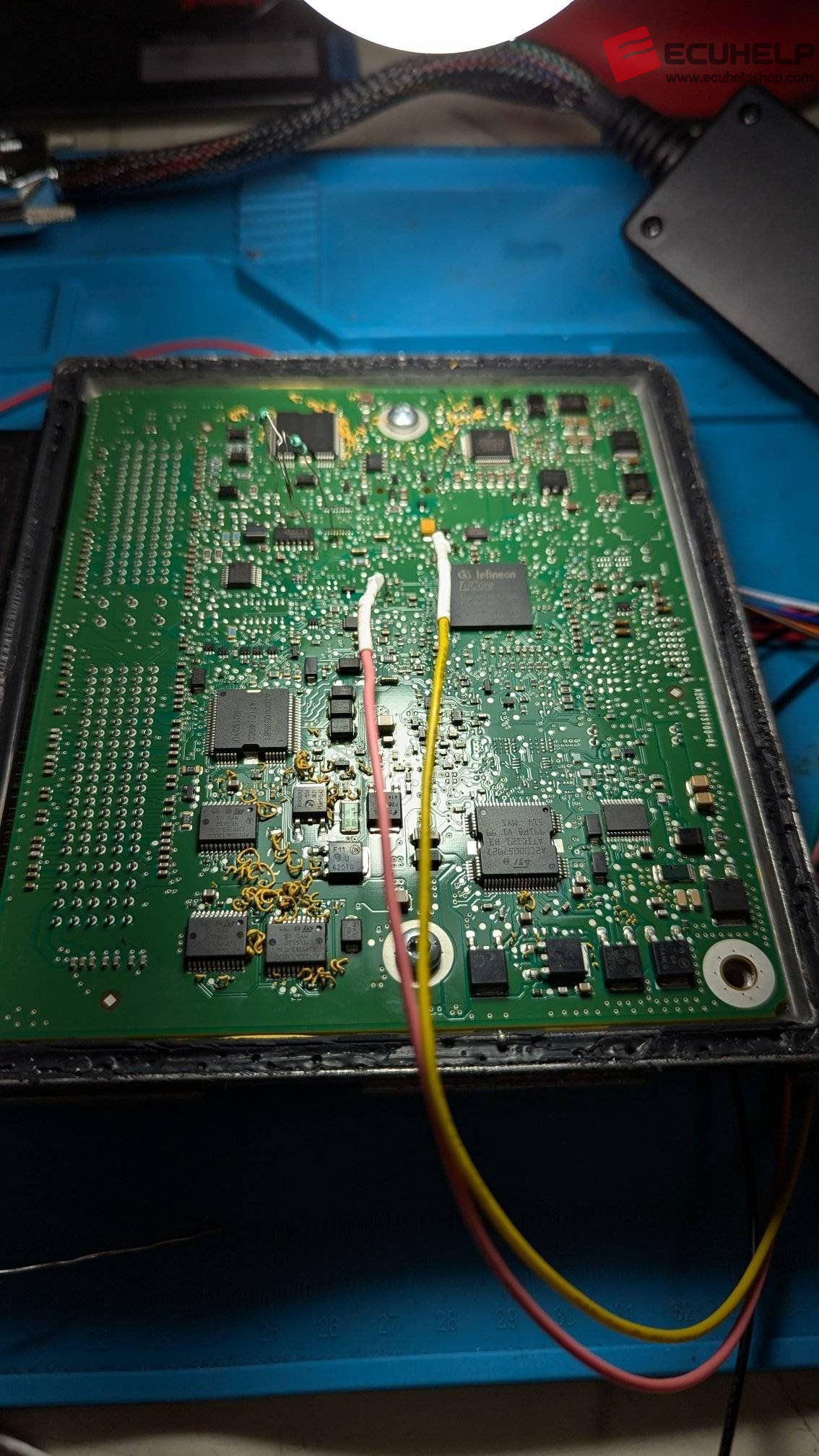

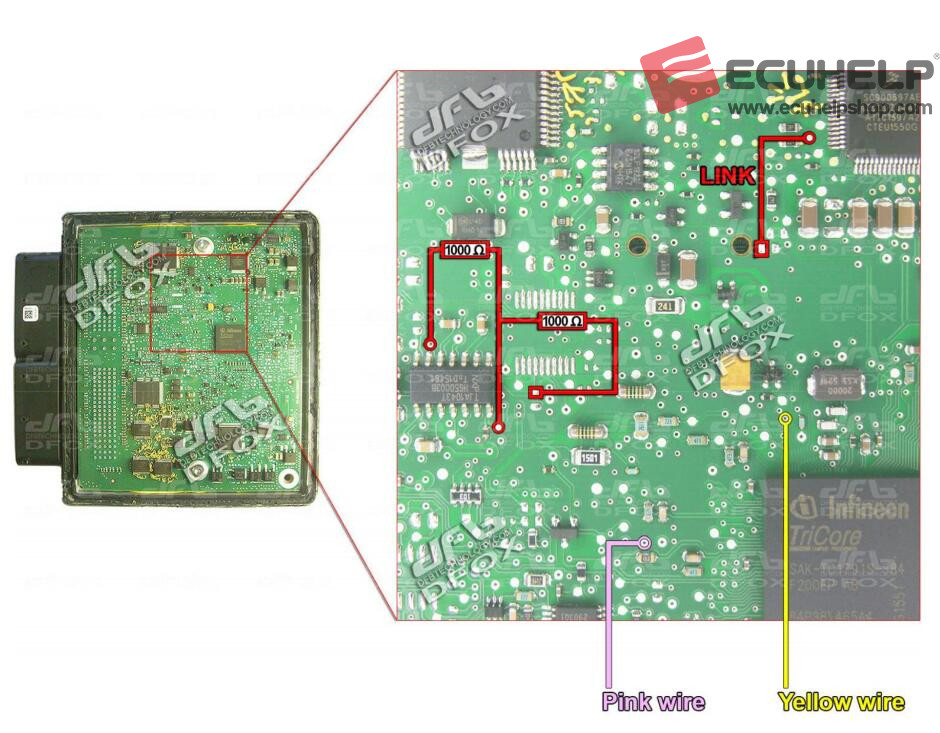

Do the connection shown below. Use the driver: → TOOLS BOOT MODE → INFINEON TRICORE Boot → SAK TC1791
