ECUHELP KT200 II ECU Programmer is capable of reading and writing the Peugeot 206 1.6 Bosch ME7.4.4 in full system mode.
Procedure:

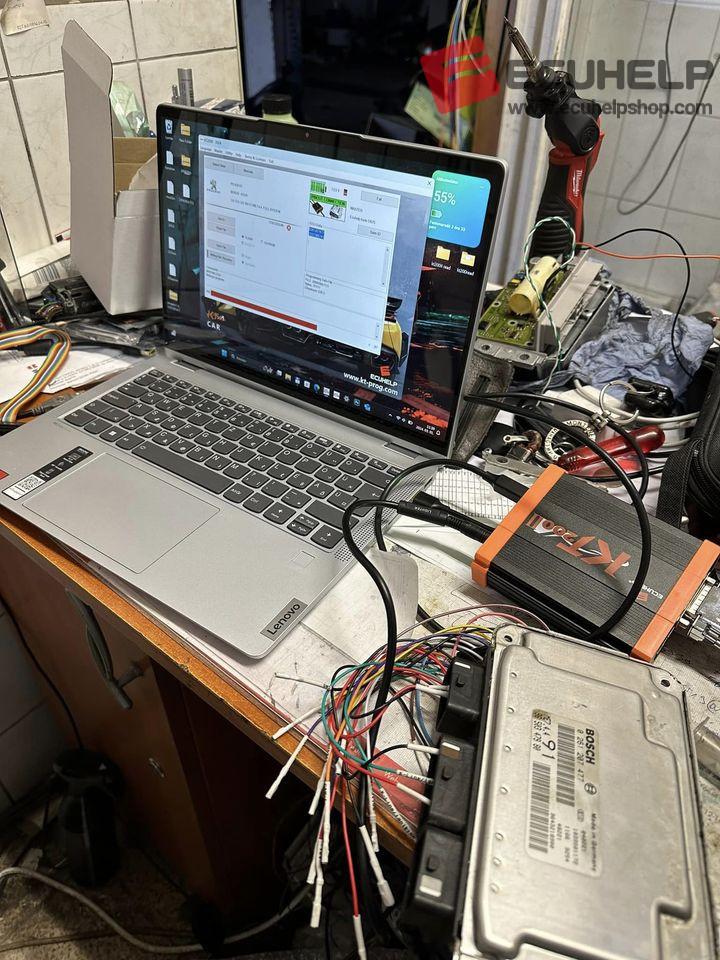

Connection: The KT200II is connected to the Bosch ME7.4.4 ECU and the computer, as shown in Image 1.

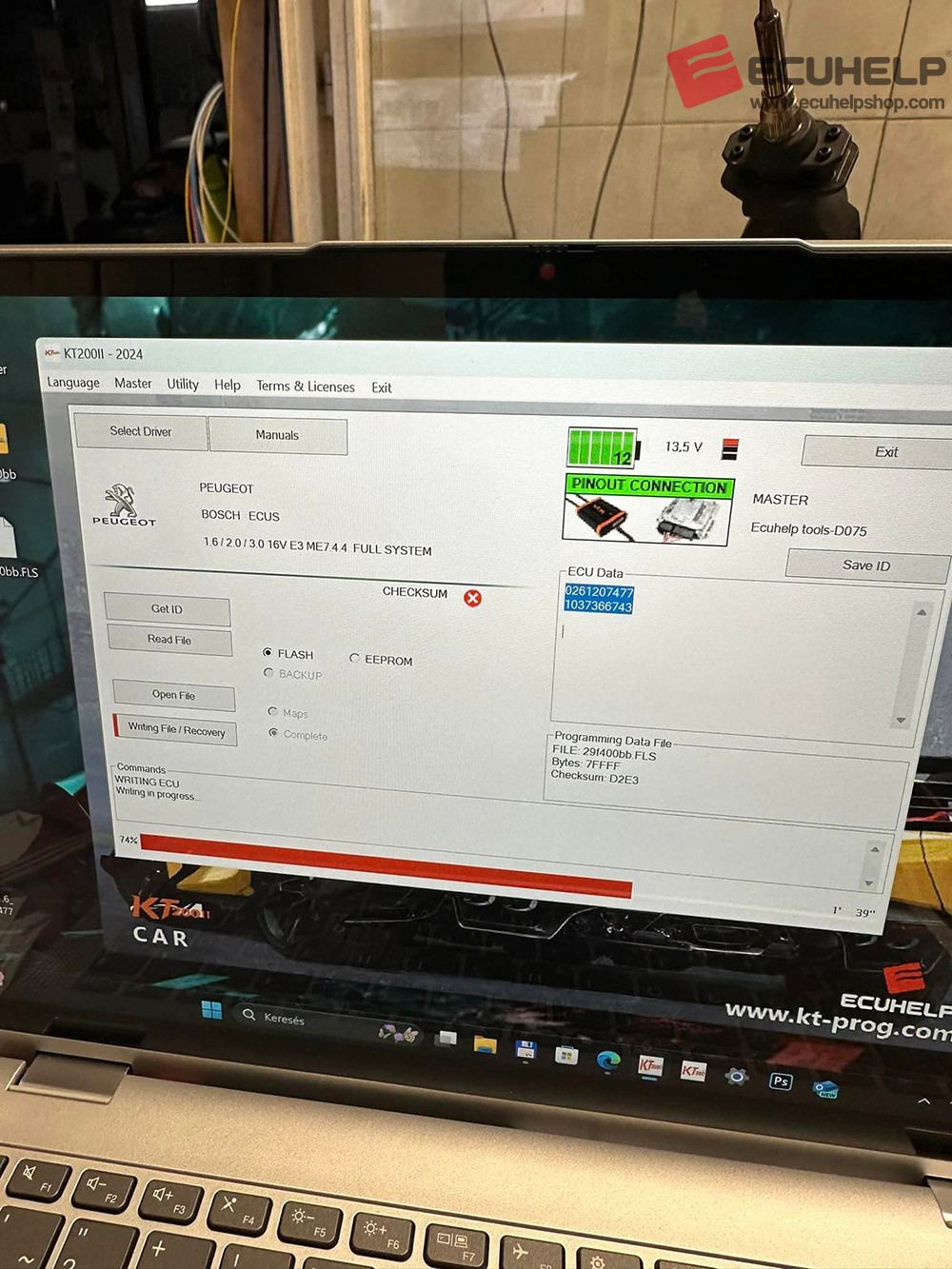

Writing Process: The KT200II is used to write to the Peugeot 206 1.6 Bosch ME7.4.4, as demonstrated in Image 2.

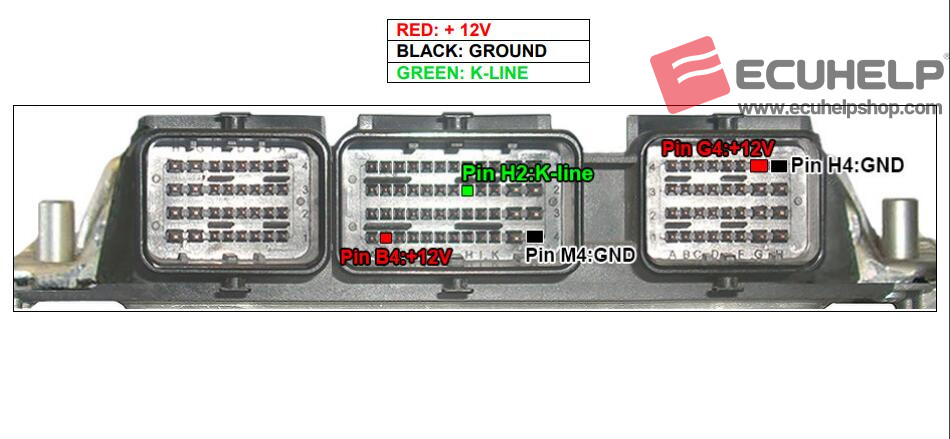

Wiring Diagram: To connect to the control unit, use a multifunction cable as per the wiring diagram of the Bosch ME7.4.4 for Peugeot and Citroen [Gasoline], shown in Image 3.
Conclusion:
KT200II ECU Programmer effectively reads and writes the Peugeot 206 1.6 Bosch ME7.4.4 ECU in full system mode. By following the correct connection procedure and using the appropriate wiring diagram, users can successfully perform ECU programming on this specific model. It is important to ensure proper connections and follow the instructions carefully for a successful operation.
