KT200II ECU Programmer is capable of reading and writing the Mercedes Sprinter CRD3P. C0 Bench Mode.
The first image provided shows the appearance of the Mercedes Sprinter CRD3P. C0 ECU.

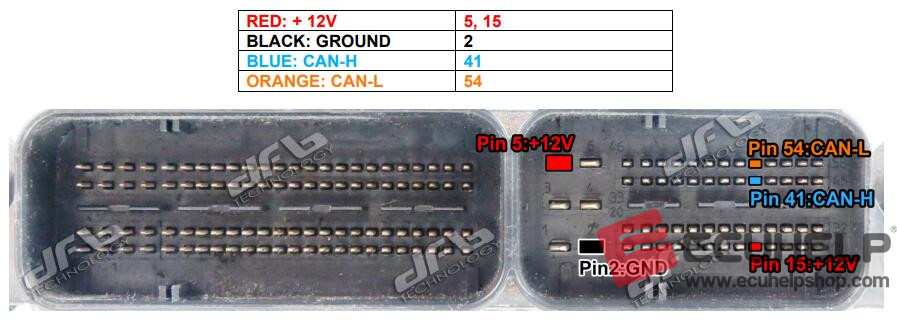

For successful operation, you can refer to the wiring diagram for the DELPHI CRD3.E, CRD3.E1, CRD3.F1, CRD3P.B0, CRD3P.C0, CRD3P.D1, and CRD3P.G0 – Solenoid[1793] Mercedes Benz [Diesel].
The required kit includes a multifunction cable and a Bench Box v.2.
To read and write, use the following driver settings:
BENCH MODE
MERCEDES BENZ
TC1793 – MERCEDES
Then, choose the appropriate option between CRD3.E, CRD3.E1, CRD3.F1, CRD3P.B0, CRD3P.C0, CRD3P.D1, and CRD3P.G0.
Another image is provided to demonstrate a 100% successful reading of the CRD3P. C0.
In conclusion, KT200II ECU Programmer effectively handles reading and writing operations for the Mercedes Sprinter CRD3P. C0 ECU Bench Mode, provided the correct wiring and driver settings are used.
