ECUHELP KT200II ECU Programmer is capable of reading and writing the MB GL320 CDI EDC16CP31 on bench.

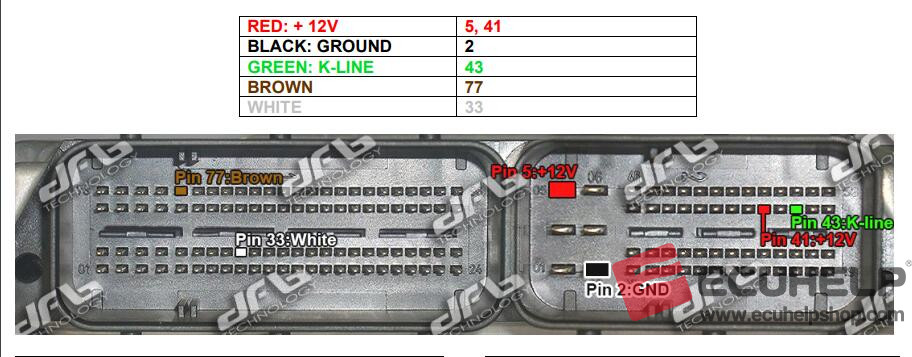

To connect the KT200II to the ECU on bench, refer to the wiring diagram provided. The connection involves using the multifunction cable and the Bench Box.

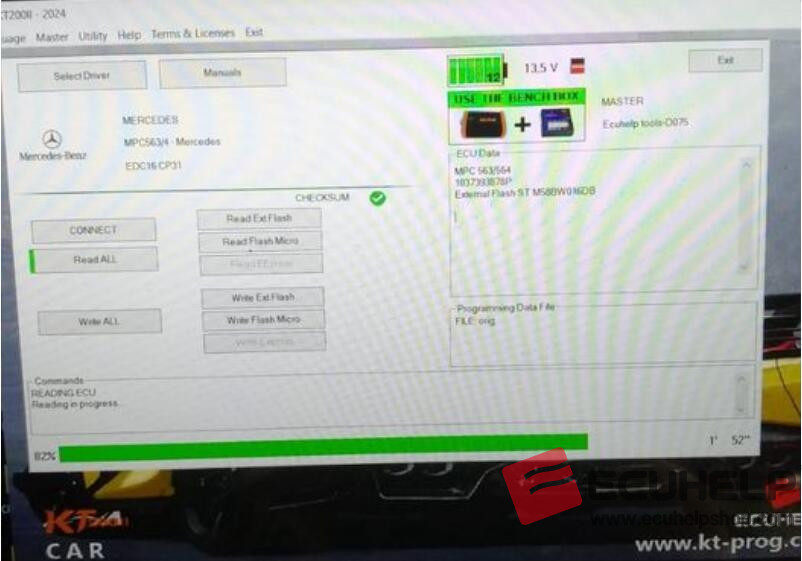

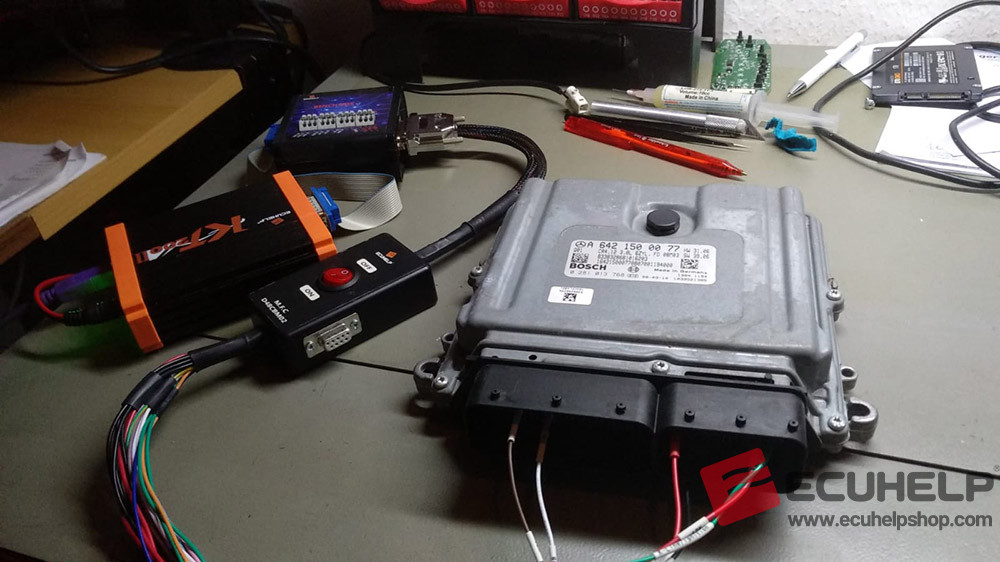

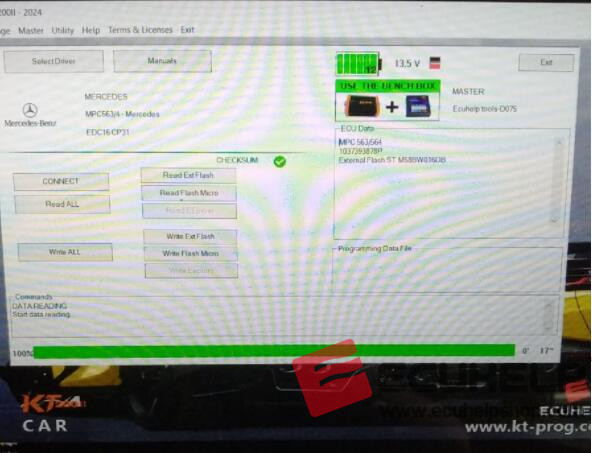

For successful reading and writing, use the BENCH MODE driver, select the appropriate brand, and choose the MPC563/4 – [brand] – EDC16 CP31 option. The images provided demonstrate the connection setup and the successful reading of the EDC16CP31 by the KT200II.
In conclusion, KT200II proves to be an effective ECU Programmer for reading and writing the ECU of the MB GL320 CDI EDC16CP31 when set up correctly on a bench.
