ECUHELP KT200II ECU Programmer is confirmed to read/write Edc17c64 Audi A3 2013 2l 184 Chevaux on Bench. Do checksum by Winols and EGR Off by Davinci 1.3.

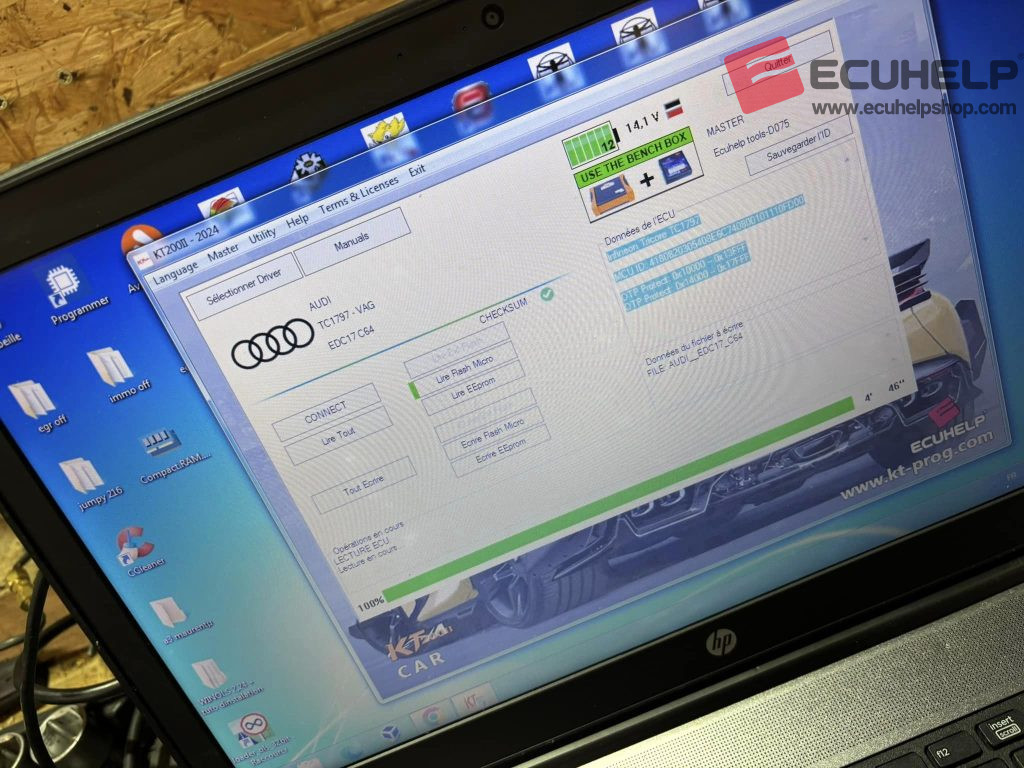

Attach 2 images of showing KT200II is connected to Edc17c64 on Bench, and read 100% ok.

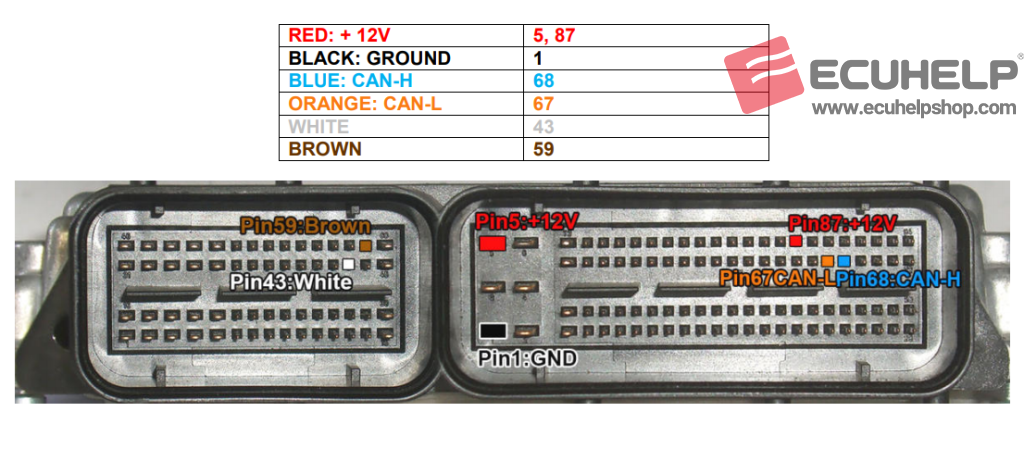

Connect the multifunction cable as follows:
KT200II read and write use the following driver:
→ BENCH TRICORE
→ VOLKSWAGEN / AUDI / SEAT / SKODA
→ TC1797 – VAG
→ EDC17 C64
