Overview of the Process:
Reading time for Volvo V70 T5 ME7.0: 4 minutes
Writing Stage 1 time: 2 minutes 50 seconds
Checksum verification using Winols: All good
ECU Programmer to use: KT200 Offline from ECUHELP
Visual Confirmation:

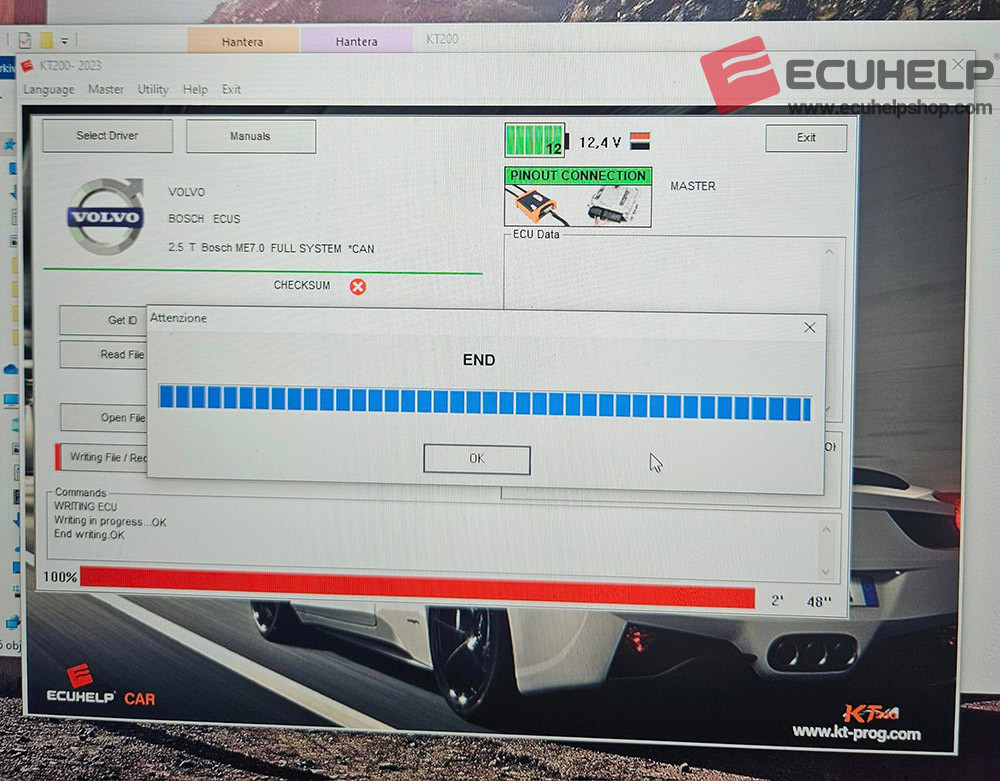

Below is an image showing the successful writing completion (100%) for Volvo V70 T5 ME7.0:

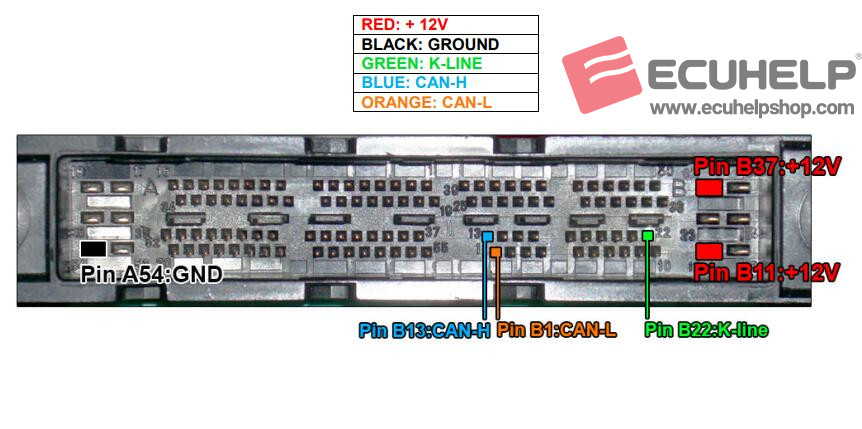

KT200 wiring diagram for BOSCH ME7.0 – Volvo [Gasoline]:
To connect to the control unit, use a multifunction cable:
Conclusion:
The ECUHELP KT200 ECU tool demonstrates efficient and reliable performance in offline reading and writing for the Volvo V70 T5 ME7.0 in the pinout mode. The process is quick, taking only a few minutes for both reading and writing, and the checksum verification with Winols ensures data integrity. With the correct wiring setup using a multifunction cable, users can expect successful outcomes in their tuning endeavors.
