ECUHELP KT200 II ECU Programmer has been tested and confirmed to read and write the Mercedes-Benz E220 CDI 2006 EDC16C2 on bench. This tool effectively performs checksum calculations.

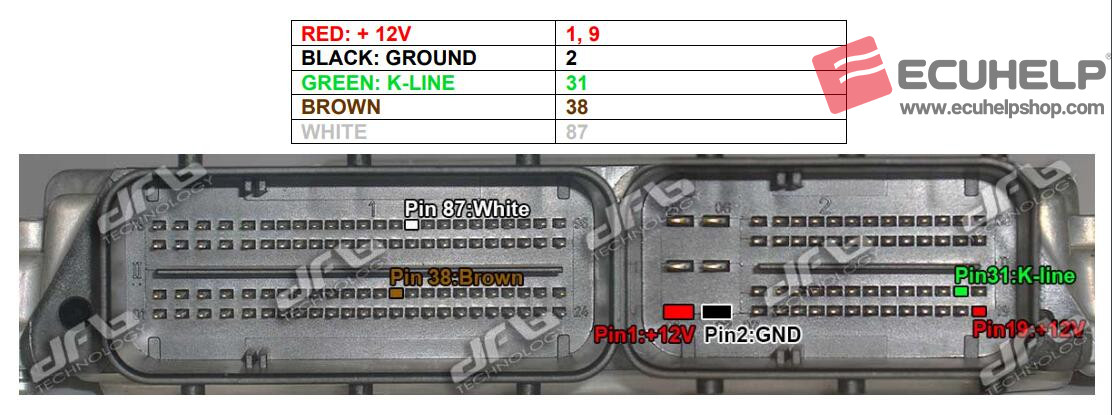

Wiring Diagram:
To establish a proper connection with the KT200 II, refer to the wiring diagram for the BOSCH EDC16 C2 [MPC555], applicable to Chrysler, Jeep, and Mercedes-Benz diesel models.

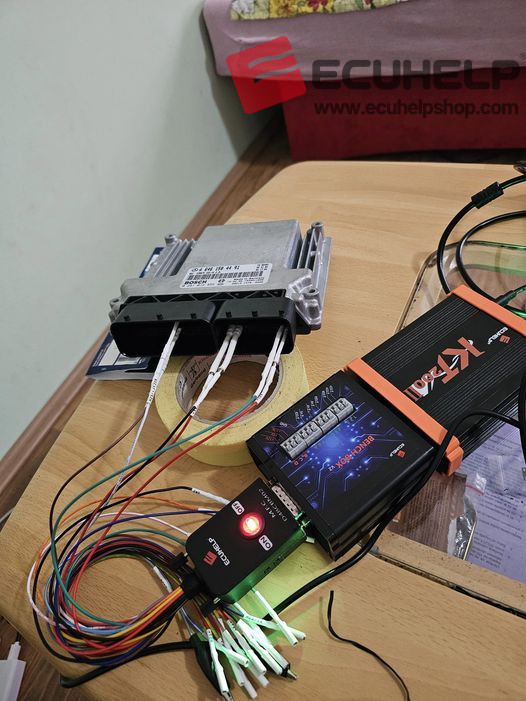

Connect the multifunction cable as follows, use the Bench Box:
To read and write use the following driver:
→ BENCH MODE
→ [brand]
→ MPC555 – [brand]
→ EDC16 C2
Conclusion:
KT200 II ECU Programmer proves to be a reliable tool for automotive technicians working with the Mercedes-Benz E220 CDI 2006 EDC16C2. Its comprehensive features, including checksum functionality, allow for efficient tuning and optimization of vehicle performance, making it a valuable asset in the field of ECU programming.
