ECUHELP KT200 II ECU Programmer is tested to read and write 807 2.2hdi 136cv Edc15c2(3 plug) Full System.
To connect to the control unit use:
– Multifunction cable
And use KT200 II to read and write Edc15c2 (3 plug).
For FULL MODE modality use also:
– Rainbow flat cable
– 3 resistores 120 Ohm
Note:

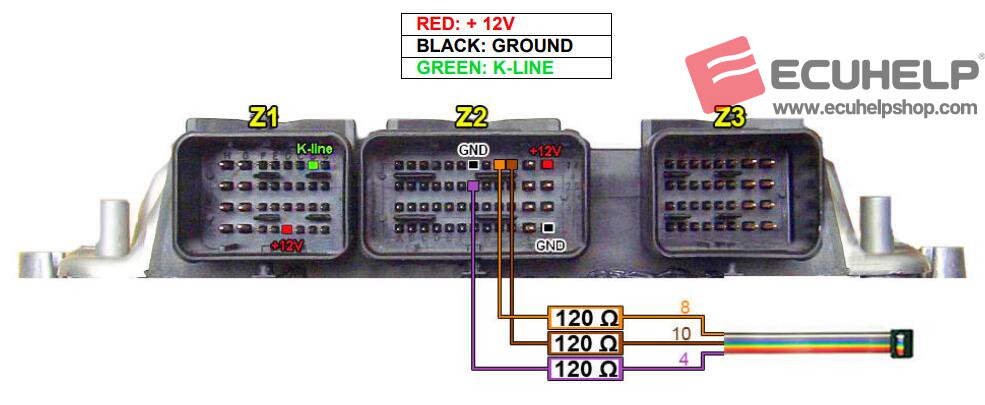

Connect the rainbow flat cable as shown in the figure only to communicate with the FULL MODE driver.

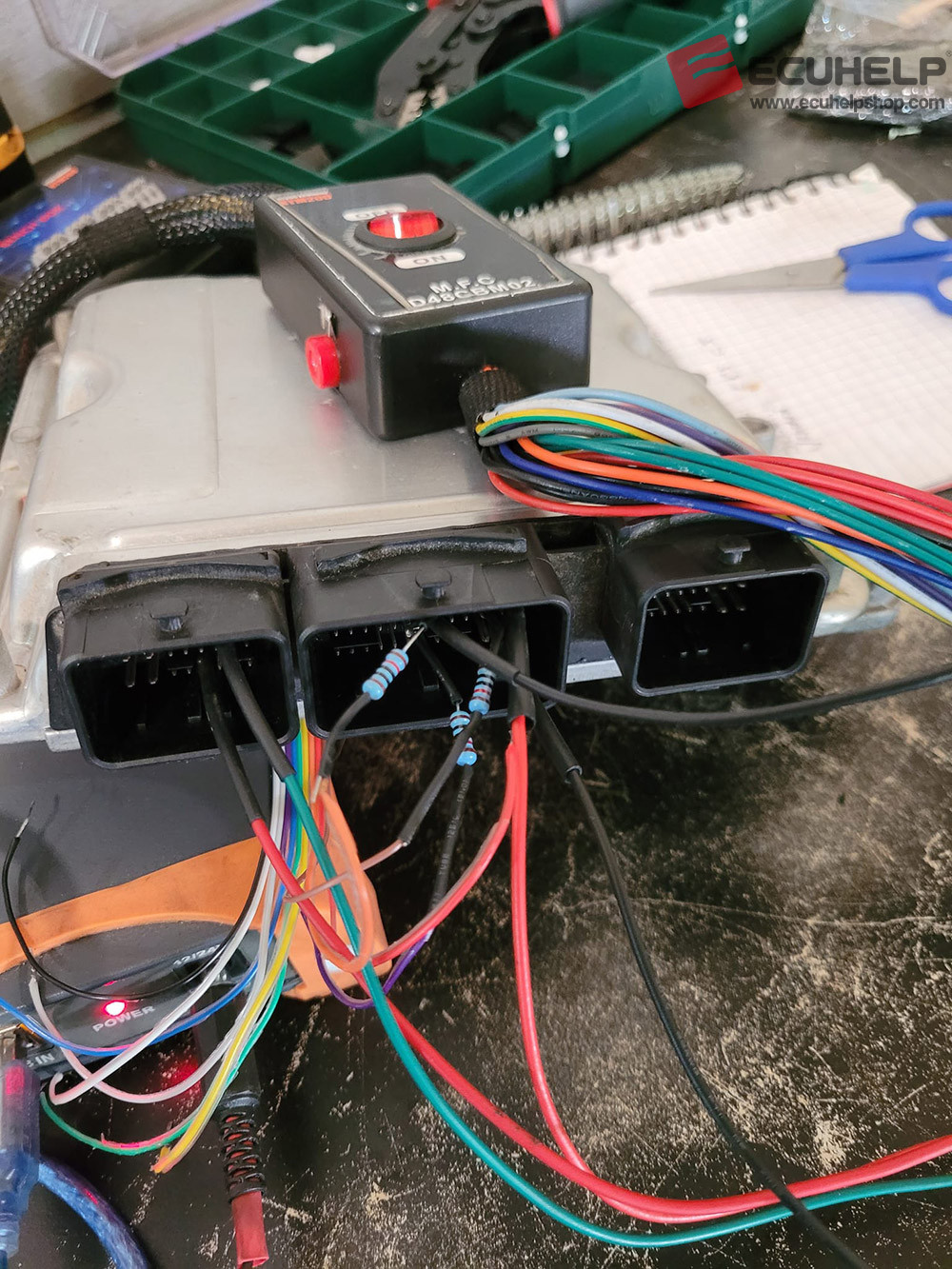

To read and write the Flash and the EEPROM using the FULL MODE driver, in addition to the multifunction cable, also connect the violet, orange and brown wires of the rainbow flat via a 120 Ohm protection resistor. In this way the ECU will enter Full Mode mode.
