KT200 II Read and Write PSA Bosch MD1CS003 on Bench

Byecuhelpshop

Jun 11, 2024

ECUHELP KT200 II stands out as an excellent ECU programmer for reading and writing the PSA Bosch MD1CS003 Bench mode.

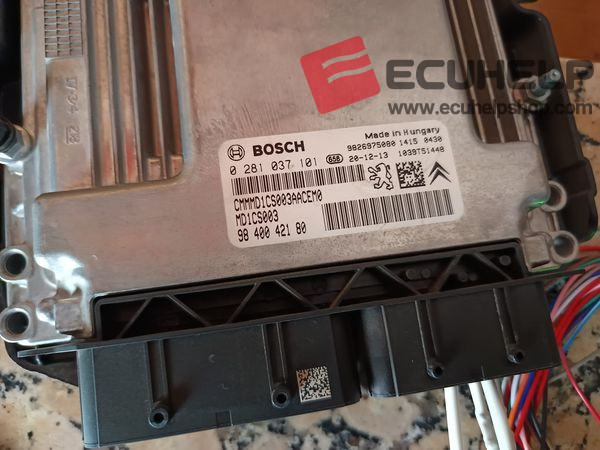

Overview of PSA Bosch MD1CS003 ECU:
KT200 II Read and Write PSA Bosch MD1CS003 on Bench-01

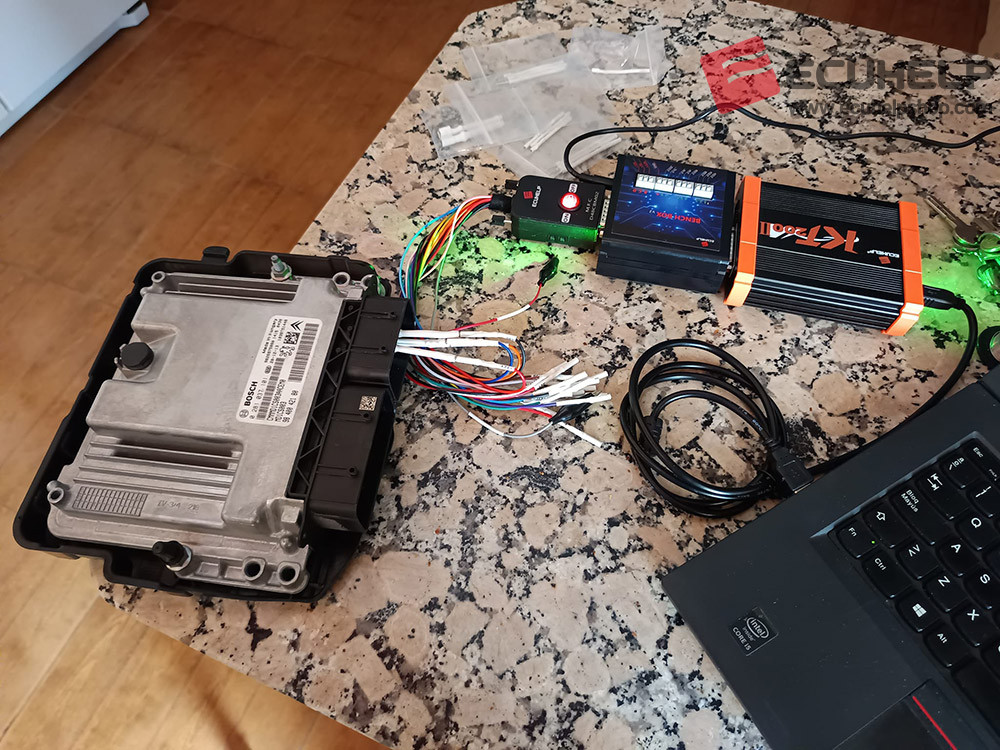

The connection among KT200 II, ECU, and Computer:
KT200 II Read and Write PSA Bosch MD1CS003 on Bench-02

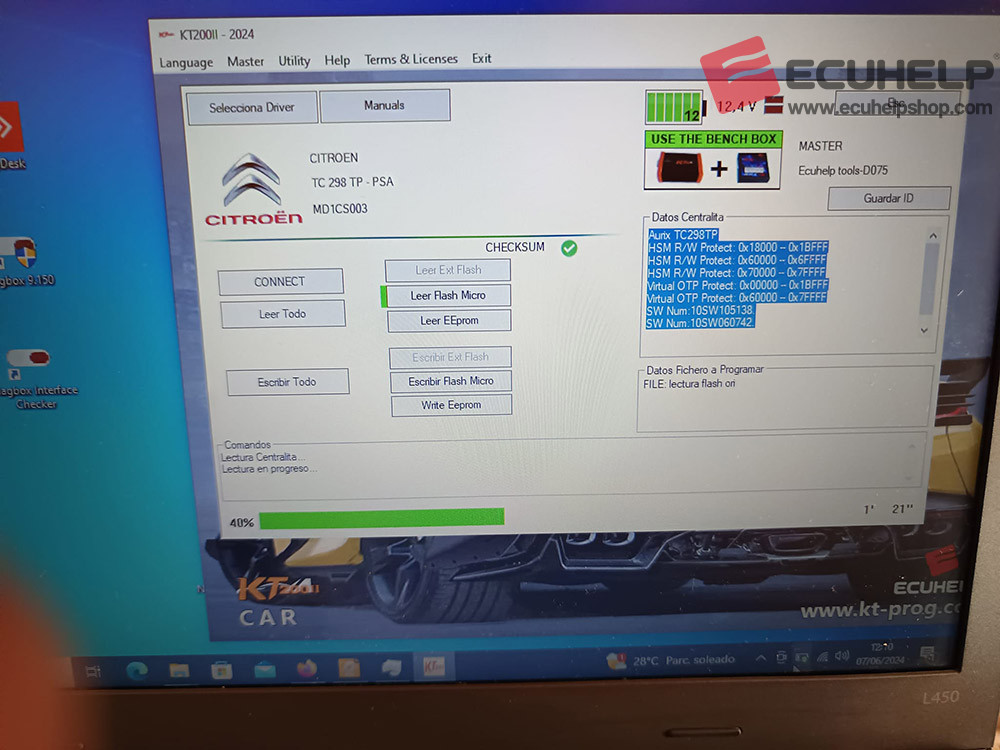

Reading Bosch MD1CS003 with KT200 II:
KT200 II Read and Write PSA Bosch MD1CS003 on Bench-04

Writing Bosch MD1CS003 with KT200 II:
KT200 II Read and Write PSA Bosch MD1CS003 on Bench-05

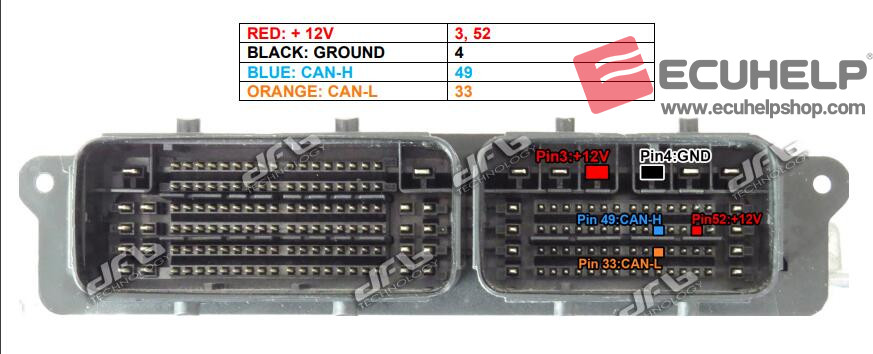

KT200 II Wiring Diagram for BOSCH MD1CS003 [TC298TP] – Peugeot, Citroen [Diesel]:
Use the following tools:
Multifunction cable
Bench Box V.2

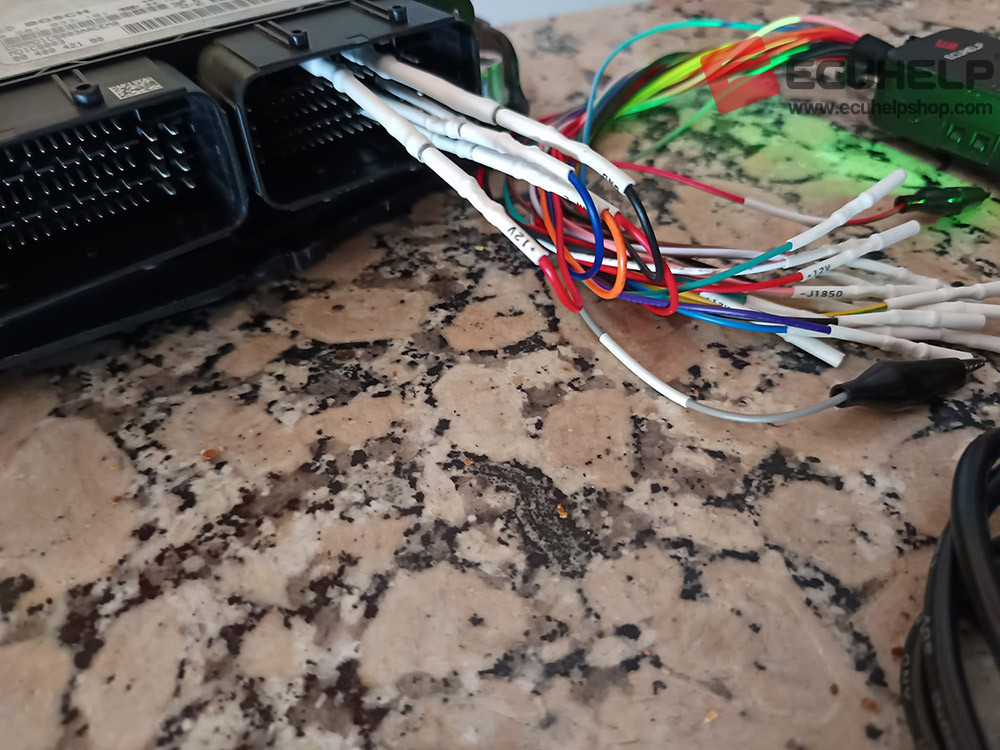

Multifunction Cable Connection:
KT200 II Read and Write PSA Bosch MD1CS003 on Bench-06

KT200 II Read and Write Driver Configuration:
→ BENCH MODE
→ CITROEN / PEUGEOT
→ TC298TP – PSA
→ MD1CS003

Conclusion:
ECUHELP KT200 II proves to be a reliable and efficient ECU Programmer for programming the PSA Bosch MD1CS003 ECU. Its comprehensive wiring diagrams, multifunction cable, and Bench Box V.2 ensure smooth read and write operations, making it an indispensable tool for ECU programming tasks.
