ECUHELP KT200 2 ECU tool can successfully read and write data from a BMW 330D 3.0L 6-cylinder engine in pinout mode. This procedure involves cloning the vehicle’s ECU, reading the data from the old ECU in full system mode, and writing the new flash in boot/eeprom mode, ensuring a complete system update.
Key Steps:
Pinout Connection:
Proper connection using the KT200 2 in pinout mode is necessary. The following image illustrates the exact wiring and setup for connecting the KT200 2 to the BMW 330D ECU for both reading and writing operations.
Reading the Old ECU:

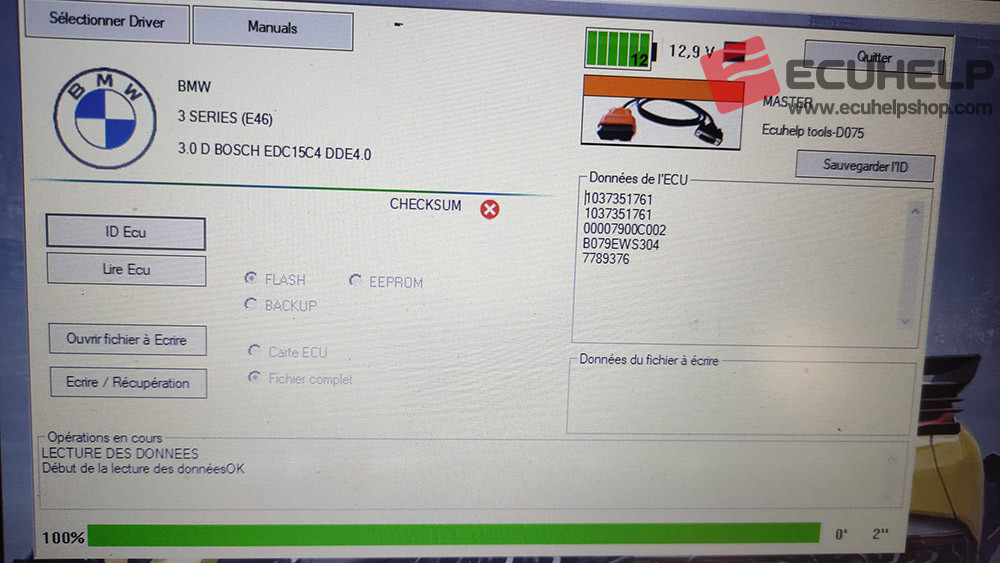

The ECU is read in full system mode, capturing all data from the old unit. This includes critical information such as immo data and other essential parameters.
Writing the New Flash:

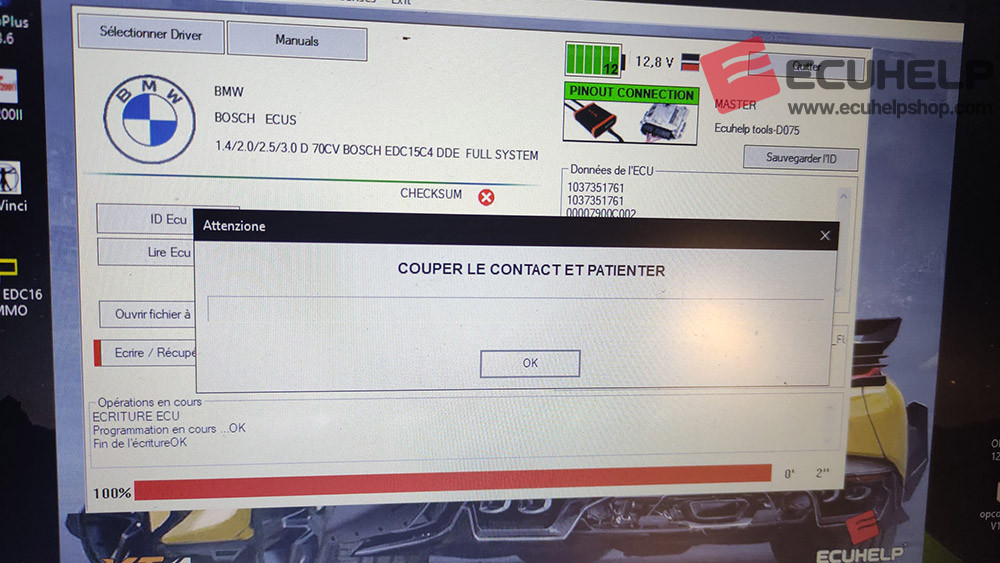

After reading, the new flash is written into the new ECU using boot/eeprom mode. This ensures all necessary data is transferred correctly, allowing the new ECU to function seamlessly in the vehicle.
Checksum Correction:
A crucial step during the process is correcting the checksum using WinOLS. It’s important to avoid using Lsuite for immo flash correction, as it can result in incorrect data.
Conclusion:
ECUHELP KT200 2 is a reliable ECU tool for reading and writing the ECU of a BMW 330D 3.0L 6-cylinder engine in pinout mode. It allows for full ECU cloning, ensuring accurate checksum correction with WinOLS. Following the correct procedures guarantees a smooth and successful process for ECU read/write operations.
