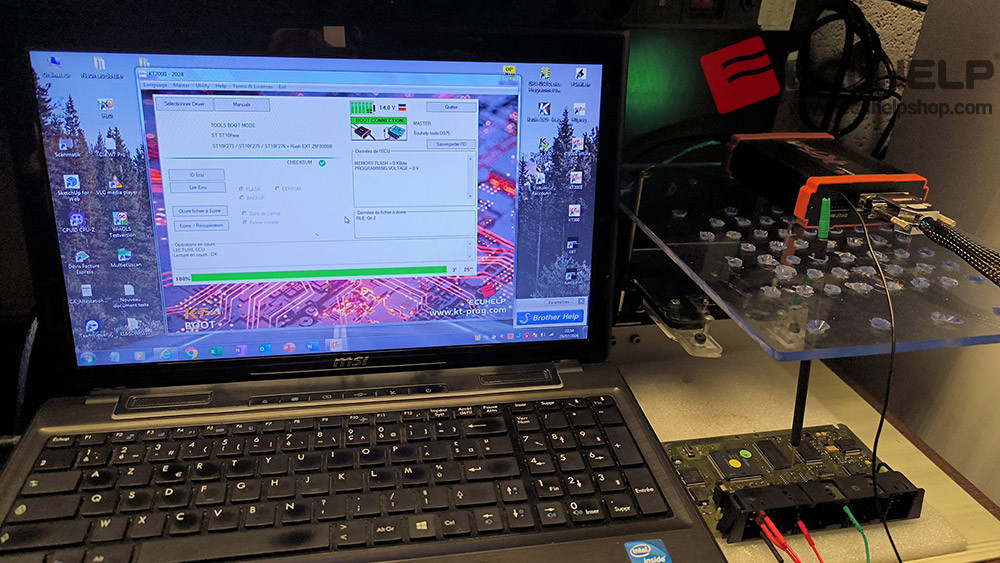

ECUHELP KT200II ECU Programmer is tested to read and write Toyota M7.9.4 boot mode.Reading/Writing time 3 minutes 30, Checksum ok.
Kit to use:
– Multifunction cable
Connect multifunction cable as follows.
KT200II read and write use the following driver:
→ TOOLS BOOT MODE
→ SIEMENS-INFINEON C167
→ Bosch – Flash 29F400
Attention:
If the ECU doesn’t enter boot mode, proceed as follows:
→ Switch off the ECU and remove the grey wire.
→ Connect directly to ground the boot pin with a needle.
→ Switch on the ECU.
→ Remove the ground.
→ Launch the driver and click the read / write buttons.
