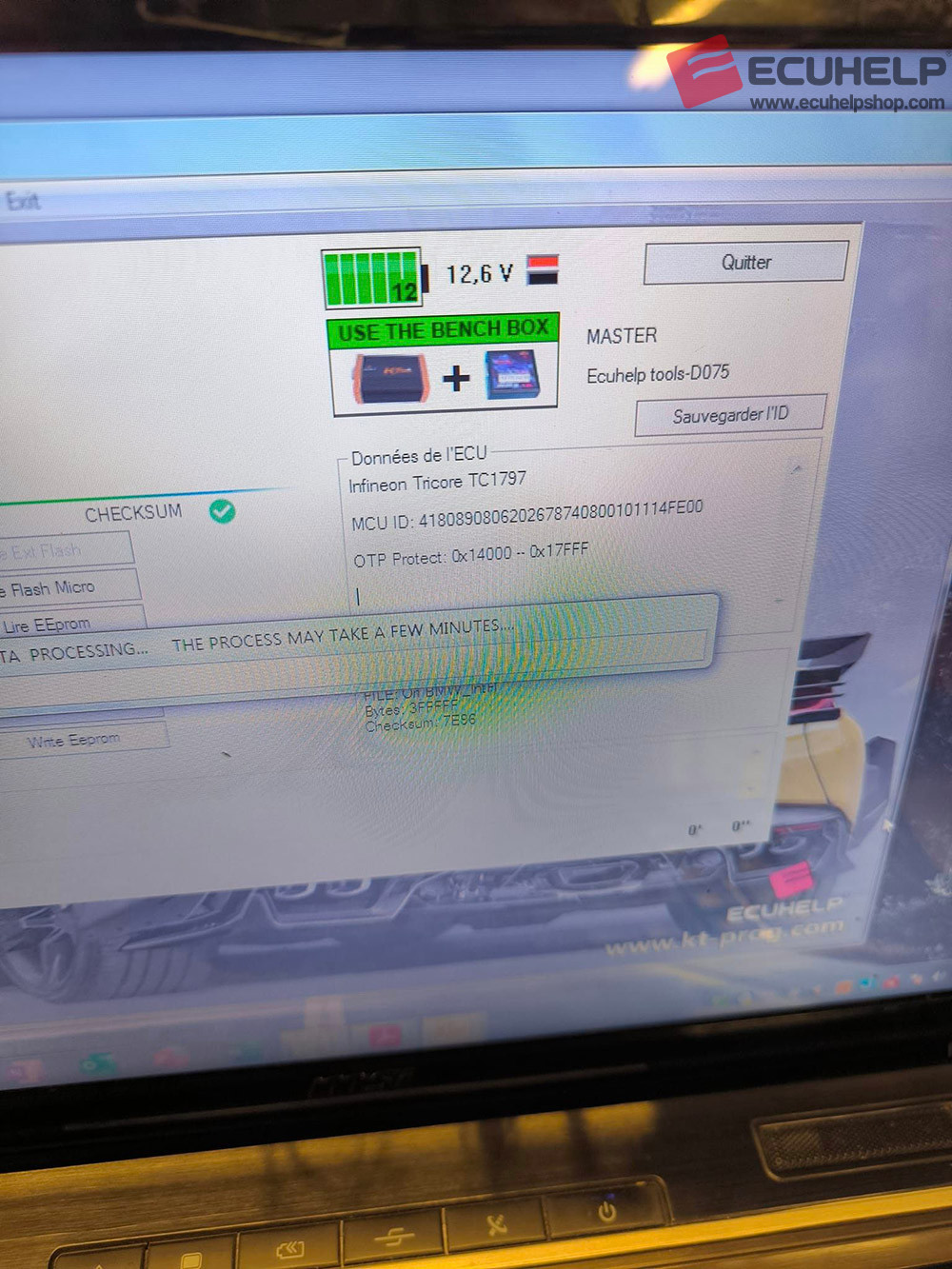

ECUHELP KT200II ECU Programmer has been successfully verified for reading and writing the 2014 EDC17C50 BMW 318 F31 on bench.

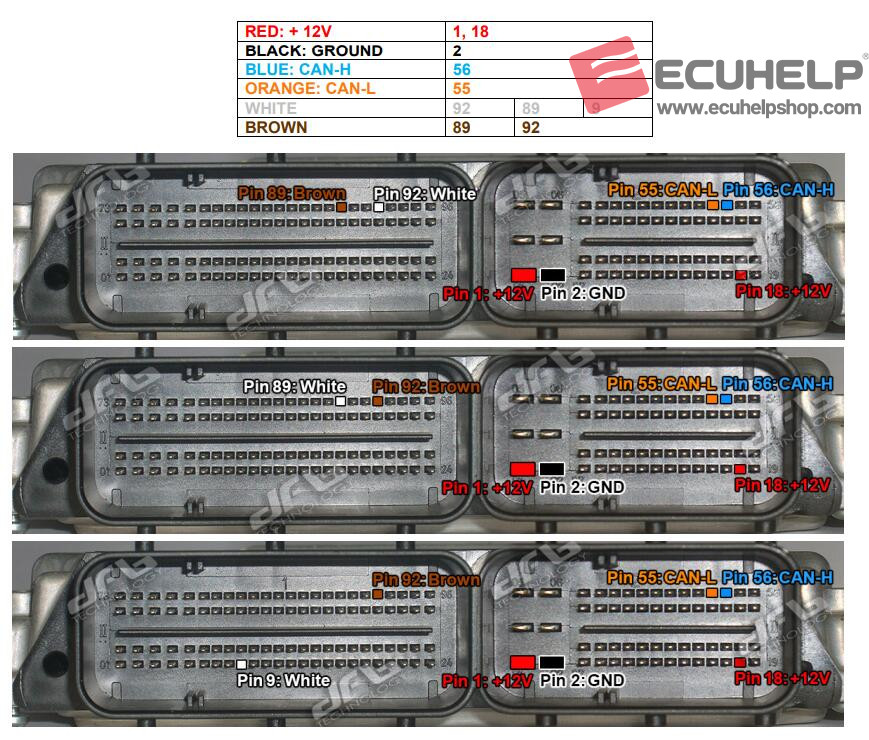

Wiring Diagram for BOSCH EDC17 C50 / C41 Vers. 2 – [ 1797 ] – BMW, Mini [Diesel]
The wiring diagram of BOSCH EDC17 C50 / C41 Vers. 2 – [ 1797 ] – BMW, Mini [Diesel]
Connect the multi-function cable as follows. For this ECU there are 3 different types of hardware versions, try the following 3 combinations in series. The ECU will not suffer any damage during connection tests.
KT200II read and write use the following driver:
→ BENCH TRICORE
→ BMW
→ TC1797 – BMW
→ EDC17 C50
ECUHELP KT200II ECU Programmer provides a reliable and safe method for reading and writing the 2014 EDC17C50 BMW 318 F31 ECU on bench. With clear wiring instructions and specific driver settings, users can confidently perform ECU operations without the risk of damage.
