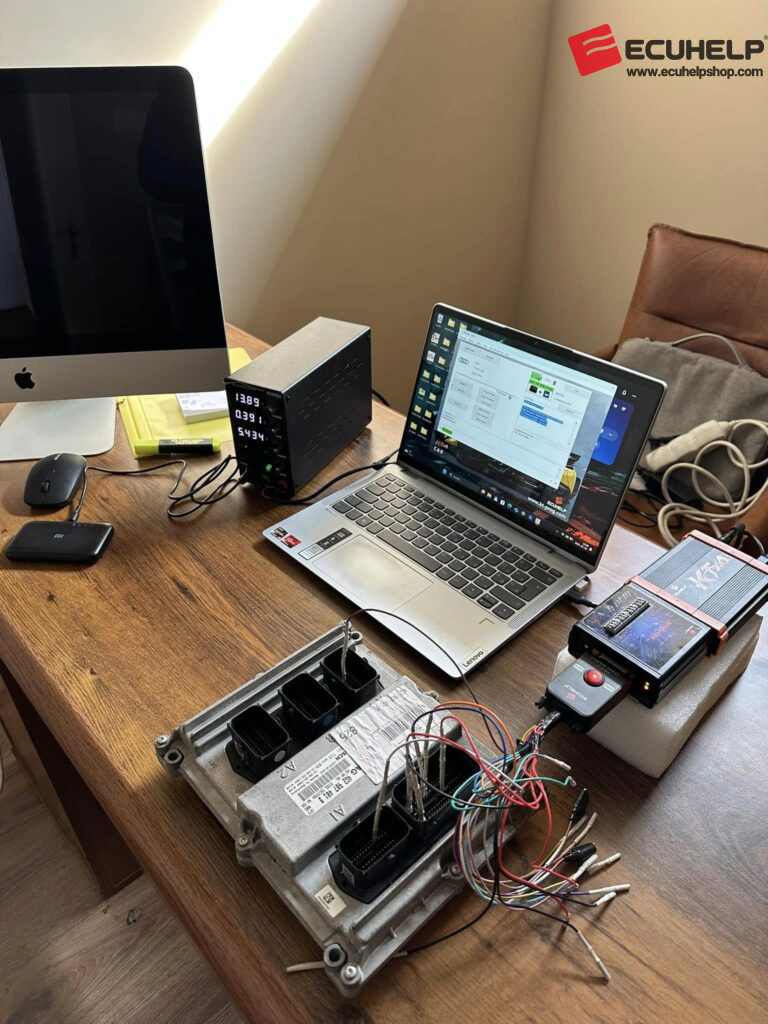

ECUHELP KT200II ECU Programmer is tested to read/write Audi A6 3.0 2017 edc17cp54 on bench, checksum calculation ok.

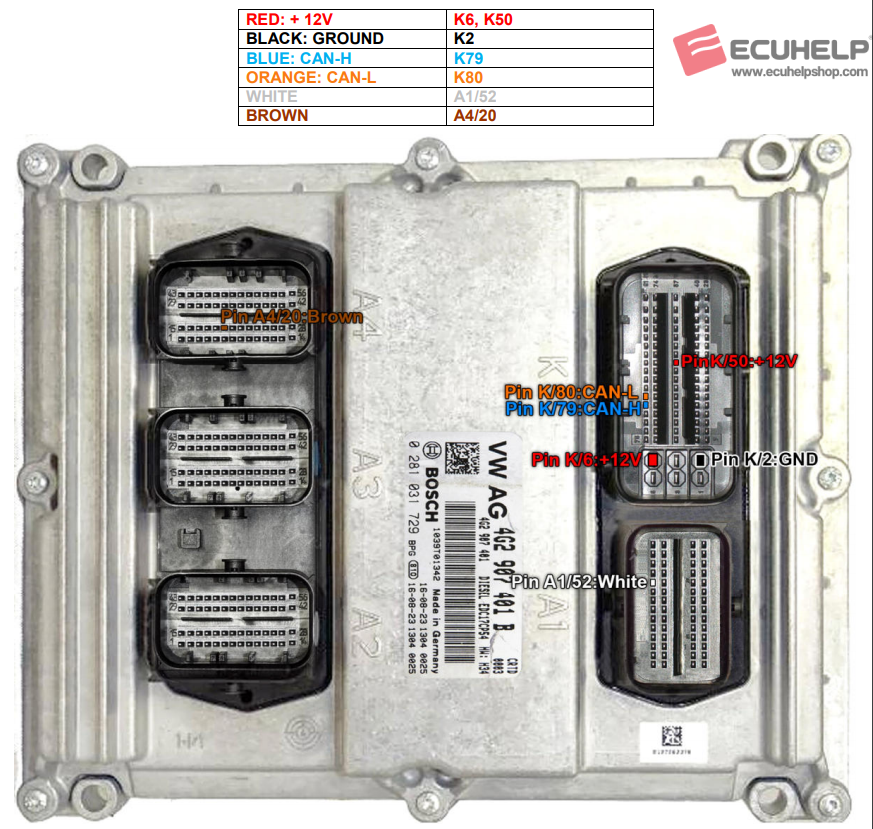

Connect the multifunction cable as follows:
See image 1-2

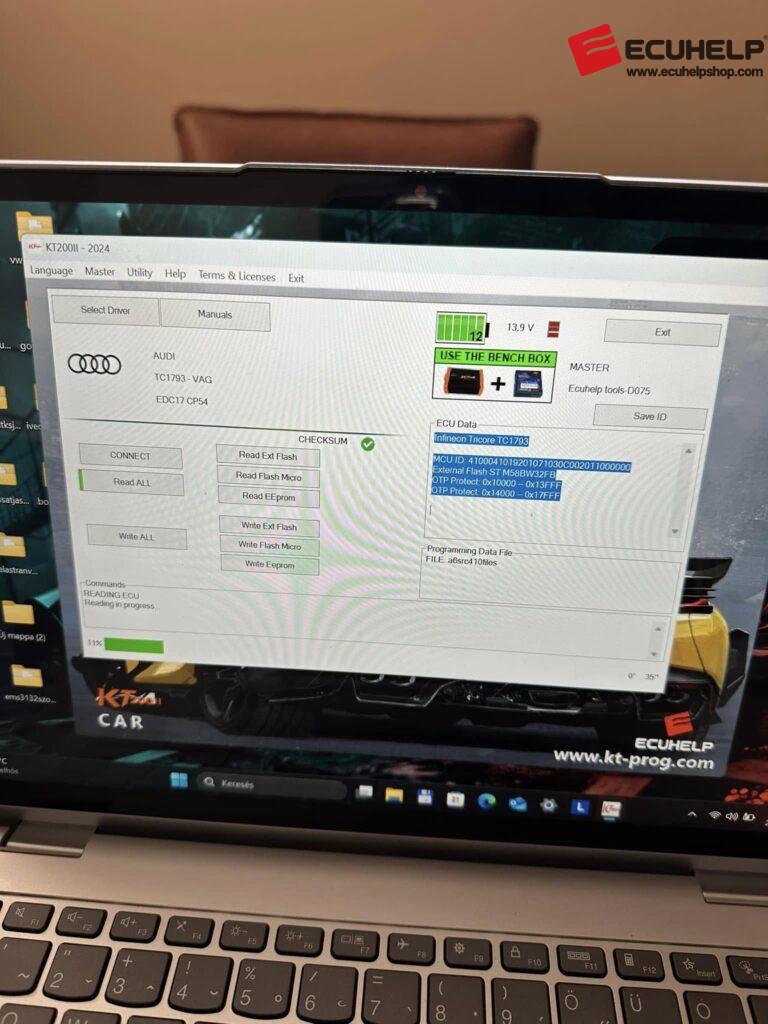

To read and write edc17cp54 using the below driver in KT200II:
→ BENCH TRICORE
→ VAG
→ TC1793 – VAG
→ EDC17 CP54
By following these steps, you can reliably read and write data to the EDC17CP54 ECU, ensuring smooth and accurate ECU tuning or adjustments for the Audi A6 3.0 2017 using the ECUHELP KT200II.
