Overview:
Model: Hyundai SantaFe 2008 2.2
ECU: edc16c39
Operation: Read and write on Bench mode
Tools: ECUHELP KT200II ECU Programmer
Compatibility: Bench mode with checksum correction
Connection Guide:

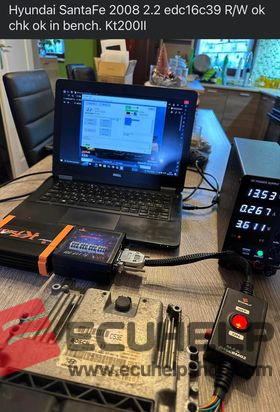

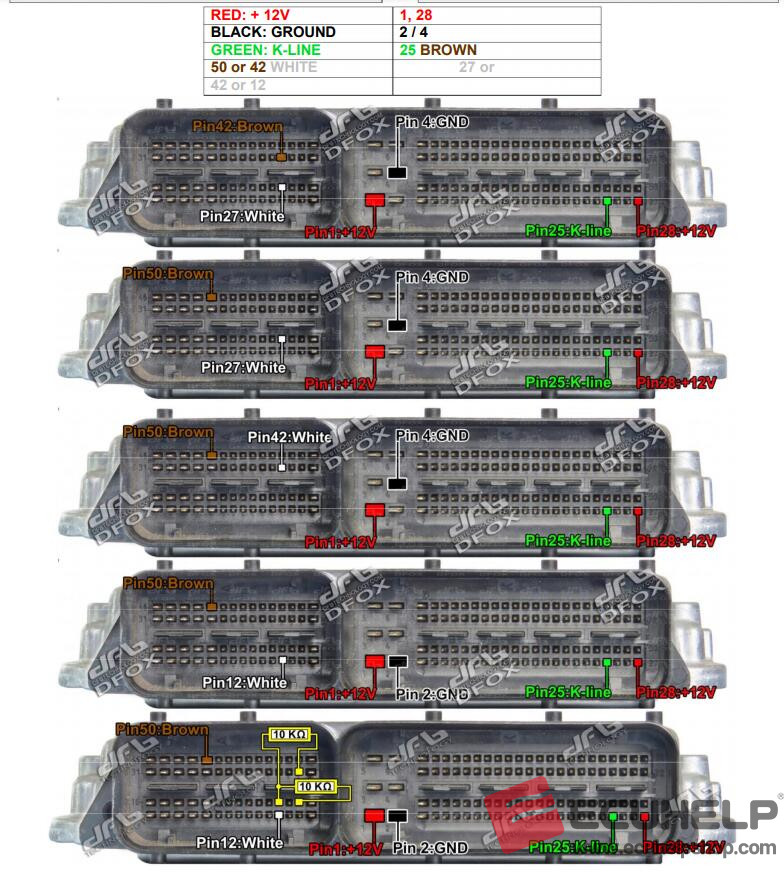

Refer to the KT200II wiring diagram for BOSCH EDC16 C39 [MPC561/2] applicable to various brands including Fiat, Alfa Romeo, Lancia, Hyundai, Iveco, Kia, Marine, PSA, GM, Opel, and Saab [Diesel].
Connect the multifunction cable as instructed and use the Bench Box.
Note: There are 5 different hardware versions for this ECU. Try each of the 5 combinations in series to find the correct one. The ECU will not be damaged during connection tests.
Reading and Writing Process:
Use KT200II with the following driver settings:
BENCH MODE
[brand]
MPC561/2 – [brand]
EDC16 C39
Additional Information:
Ensure that all connections are secure and correct before proceeding with read and write operations.
Always follow safety precautions and manufacturer guidelines when working with ECU programming tools.
