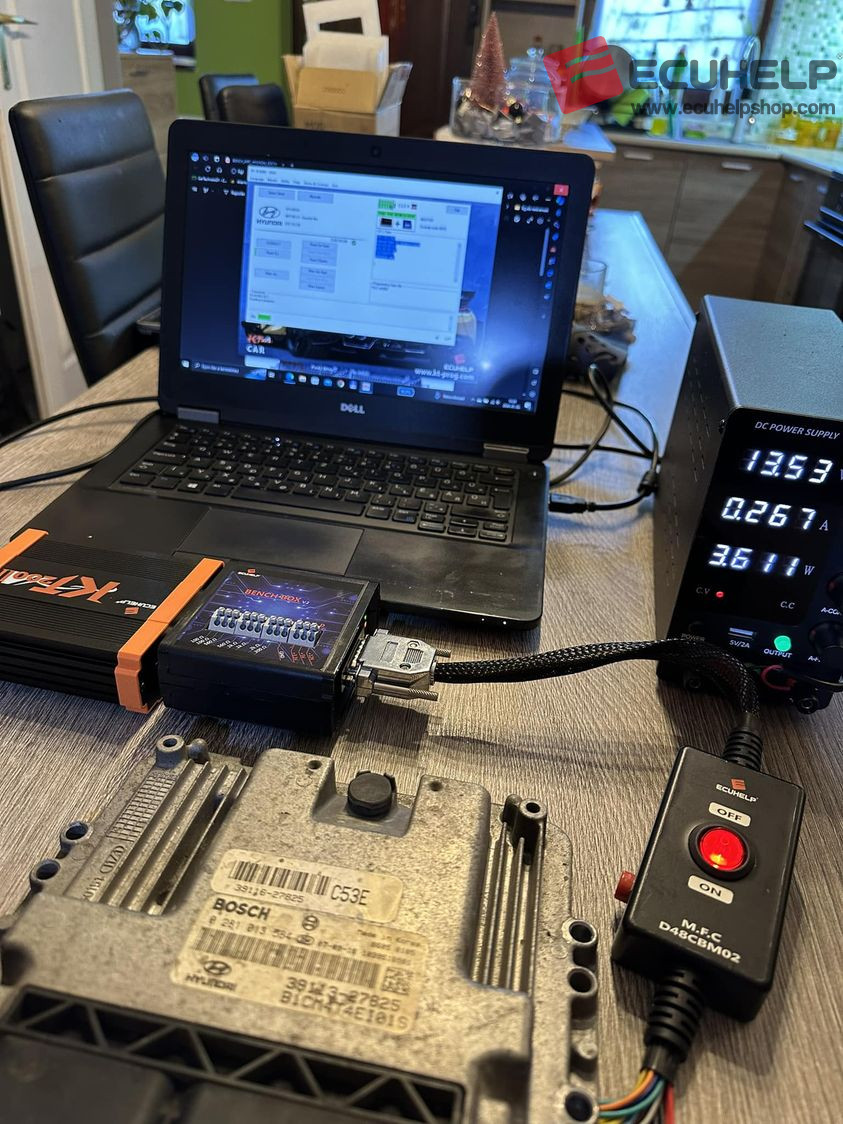

Get ready to elevate your Hyundai SantaFe 2008 2.2 edc16c39 tuning experience with the KT200II! This powerful tool has been rigorously tested and proved to be highly effective, delivering flawless read, write, and checksum operations on bench.

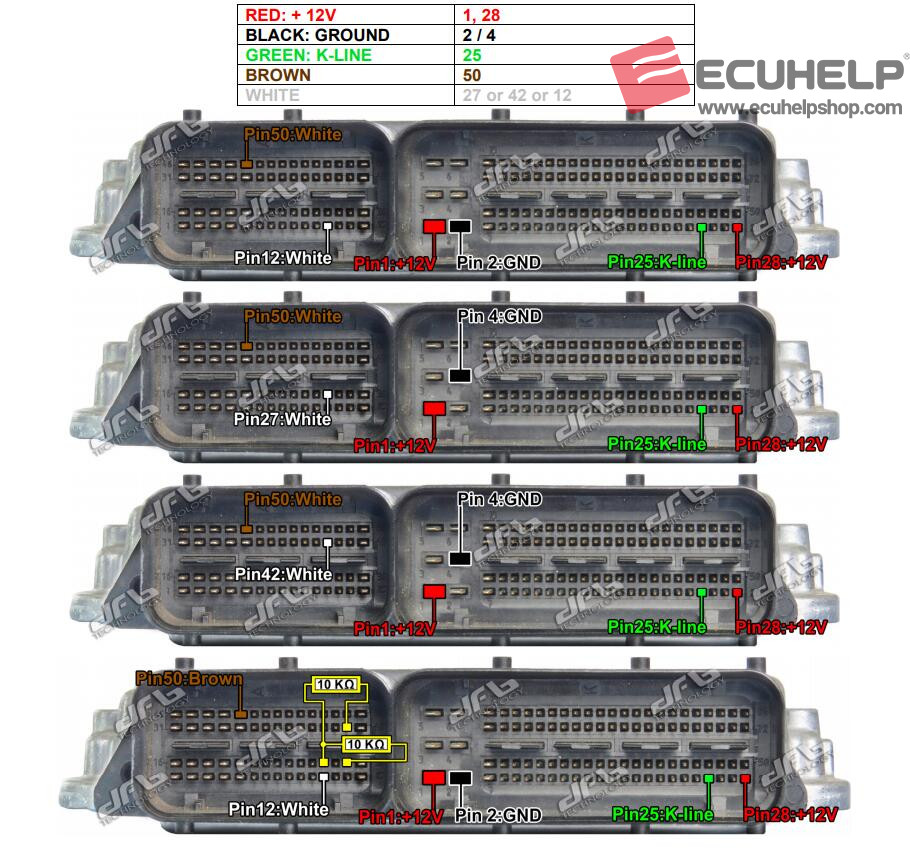

KT200II wiring diagram of BOSCH EDC16 C39 [ MPC561/2 ] Fiat, Alfa Romeo, Lancia, Iveco, Marine, PSA, GM, Opel, Saab [Diesel]
Connect the multifunction cable as follows, use the Bench Box. For this ECU there are 4 different types of hardware versions, try the following 4 combinations in series.
The ECU will not suffer any damage during connection tests.
Use KT200II to read and write use the following driver:
→ BENCH MODE
→ [brand]
→ MPC561/2 – [brand]
→ EDC16 C39
With this guide, harnessing the full potential of the KT200II for your Hyundai EDC16C39 becomes a straightforward and efficient process. Get ready to experience a new level of control and precision in your vehicle’s performance tuning!
